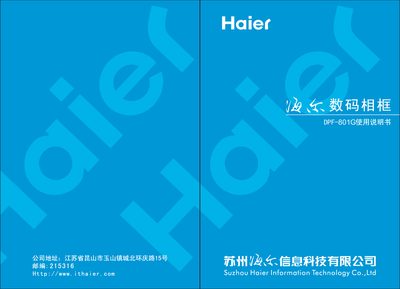

This document is the user manual of Haier digital photo frame DPF-801G. It mainly introduces the product's functional features, appearance design, connecting power supply, inserting storage cards or USB, turning on/off, main interface, function menu selection, automatic playback, playing movies, playing pictures, playing music, etc.
This manual provides step‑by‑step instructions for installing, operating, and maintaining the Haier DPF‑801G digital photo frame. It covers safety warnings, power connection, inserting storage media, and using the remote control.
The guide also details menu navigation, playback of images, music, and videos, as well as system settings, automatic playback options, and troubleshooting tips. This manual is written in Chinese.
| Display size | 8.0‑inch TFT LCD |
|---|---|
| Resolution | 800 × 600 pixels |
| USB interface | USB HOST (compatible USB 2.0 and USB 1.1) |
| Supported image format | JPEG |
| Supported video formats | MPEG‑1, MPEG‑2, DIVX 5.0, XVID, M‑JPEG |
| Supported audio formats | MP3, WMA |
| Storage card types | SD, MMC, MS, XD |
| Maximum SD card capacity | 8 GB |
| Maximum MMC card capacity | 2 GB |
| Power adapter input / output | AC 100‑240 V → DC 9 V |
| Operating temperature | 0 °C – +45 °C |
| Storage temperature | -20 °C – +55 °C |
The device powers on automatically when the power adapter is connected; to turn it off, press and hold the power key for about 2 seconds.
Insert an SD/MMC/MS/XD card into the card slot or connect a USB flash drive to the MINI‑USB port.
Select the “自动播放” option in the function menu and confirm; the frame will then play images and music automatically.
Use the volume‑‑ and volume‑+ keys on the remote control or the panel to lower or raise the sound level.
