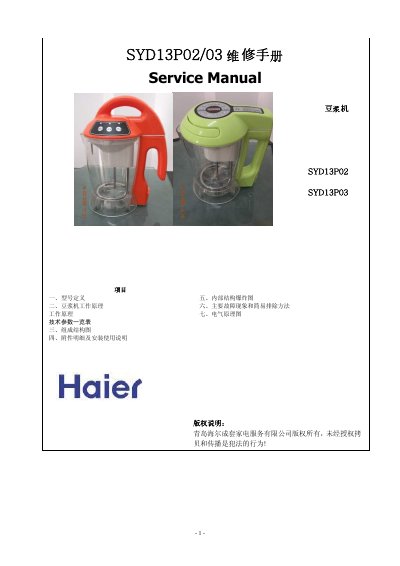

This document is the SYD13P02/03 soymilk machine maintenance manual, which mainly introduces the use precautions, working principle, model definition and other contents of the product
This service manual provides safety precautions, model definitions, working principles, and detailed component diagrams for the Haier SYD13P02 and SYD13P03 soy milk machines. It includes instructions on proper use, protection features, and an overview of the high‑speed series motor and plastic housing.
The document also lists technical specifications, a comprehensive fault‑symptom table, troubleshooting steps, and a wiring diagram with recommended repair tools such as screwdrivers, pliers, and a multimeter. This manual is written in Chinese.
| Capacity | 1.3 L |
|---|---|
| Motor Type | High‑speed series motor |
| Maximum Input Voltage | 245 V |
Do not bend the machine head, avoid inserting the plug with wet hands, use a grounded outlet, and never operate the machine without water or with the head lifted.
Check that the power plug is properly inserted, verify the power indicator, and inspect the motor for damage; replace the motor if it is faulty.
The SYD13P02 model has a capacity of 1.3 L.
