Philips Ledino Ceiling Spot 69074/31/66 is a high quality, energy efficient ceiling spot with a cool daylight light effect. It features high power LED modules, a strong light output, a beam angle of 40 degrees, dimmable, free rotation and a service life of up to 20 years.

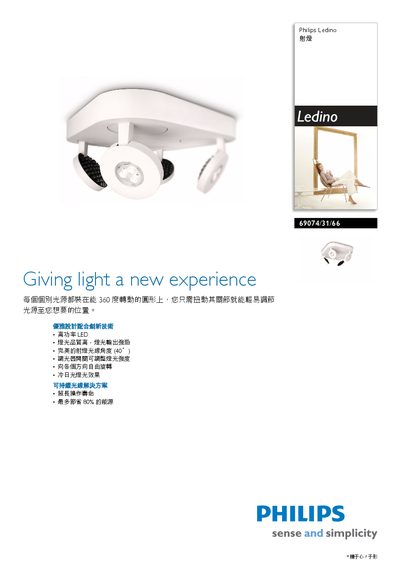

This manual introduces the Philips 690743166 LED spotlight, highlighting its high‑power LED modules, 40° beam angle, and energy‑saving features. It explains the product’s design, adjustable direction, and long service life of up to 20 years.
The document includes technical specifications, dimensions, wiring information, dimming compatibility, warranty details, and safety guidelines to help users install and operate the fixture safely and efficiently. This manual is written in Chinese.
| Power supply voltage | 220-240V, 50/60 Hz |
|---|---|
| Output type | SELV |
| Energy consumption | 4 x 7.5 W |
| Light source | 4 LED modules |
| Color temperature | 4000 K |
| IP rating | IP20 |
| Height | 30.5 cm |
| Length | 30 cm |
| Width | 9.5 cm |
| Weight | 2.3 kg |
It consumes four 7.5 W LED modules, for a total of 30 W.
The product has an IP20 rating.
