This document describes the installation instructions and precautions for Haier water heater, including installation location, inlet and outlet water pipe interface, power socket, etc.

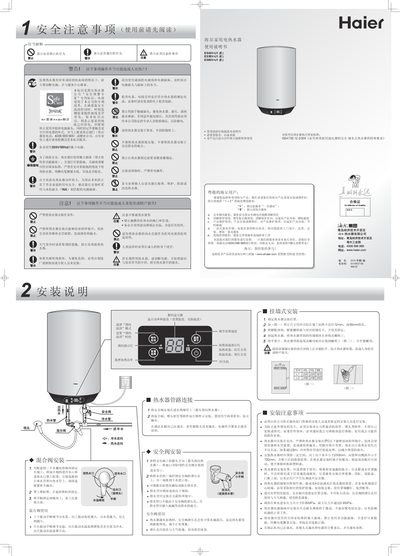

This manual begins with safety precautions and installation instructions for the Haier ES40V‑U1(E), ES50V‑U1(E) and ES60V‑U1(E) electric water heaters. It explains required electrical supply (220 V 50 Hz dedicated outlet with reliable grounding), prohibited locations (outdoors, freezing environments), and detailed mounting procedures using expansion bolts and wall brackets.
The second part covers operation and maintenance, including power level selection (P1 1000 W, P2 2000 W, P3 3000 W), temperature setting (30 °C‑75 °C), appointment bath programming, cleaning of the heater and spray head, periodic inspection of the safety valve, and troubleshooting of common fault codes. This manual is written in Chinese.
| Power (P1) | 1000 W |
|---|---|
| Temperature setting range | 30 °C – 75 °C |
| Water capacity (ES60V‑U1(E)) | 60 L |
