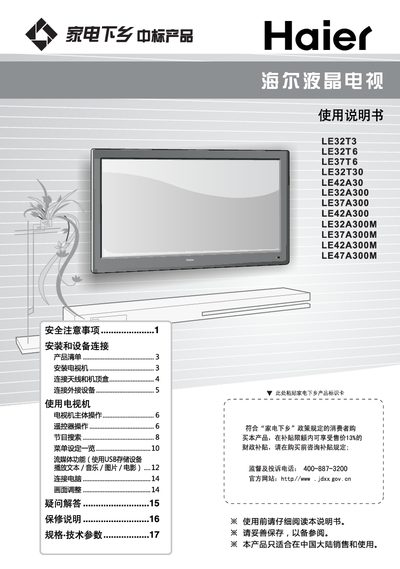

This manual provides safety guidelines, installation instructions, and operating procedures for Haier LE series LCD/LED televisions. It includes details on connecting antennas, external devices, and using the remote control, as well as recommended mounting and ventilation requirements.
Technical specifications for each model in the LE series are listed, including power consumption, dimensions, weight, supported video inputs, and environmental operating limits. The document also outlines the “home appliance subsidy” program and after‑sale service contacts. This manual is written in Chinese.
| Power consumption (typical) | 60 W (LE32T3, LE32T6, LE32T30, LE32A300, LE32A300M) |
|---|---|
| Power consumption (typical) | 110 W (LE42A30, LE42A300, LE42A300M) |
| Dimensions (W×H×D) with base | 791 mm × 210 mm × 566 mm (LE32T3) |
| Dimensions (W×H×D) without base | 791 mm × 40 mm × 508 mm (LE32T3) |
| Weight (with base) | 11.9 kg (LE32T3) |
| Supported video inputs | AV, Component, HDMI, DVI, VGA, USB, DSMB |
| Operating temperature range | +5 °C ~ +35 °C |
Wall mounting should be performed by a professional technician; the TV must be securely attached to a suitable Haier wall‑mount bracket and sufficient ventilation space must be left around the unit.
The nationwide after‑sale service and complaint hotline is 400‑887‑3200.
The remote control uses two size‑7 (AA) alkaline batteries.
The TV operates on 220 V ± 10 % AC, 50 Hz mains power.
