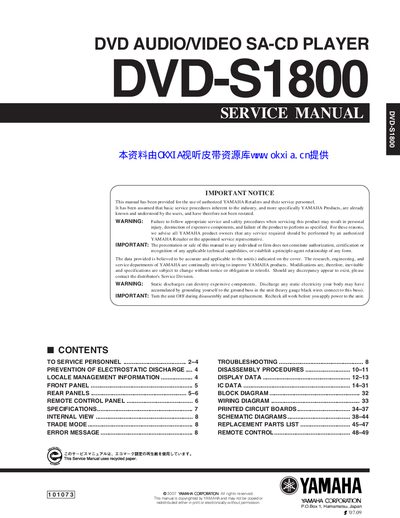

Yamaha DVD‑S1800 Service Manual

This manual is provided for the use of authorized YAMAHA Retailers and their service personnel.

Brand: Yamaha
Category: Other
Document type: Service Manual
Language: English
Pages: 49
File format: PDF
File size: 6.8 MB
Published: 15 February, 2012
Updated: 30 September, 2023
Model: DVD-S1800
MD5 checksum: D4BD0C1D545210EF0A1D77CFC52B8039
PDF: Yamaha DVD‑S1800 Service Manual PDF

About this manual

This service manual is intended for authorized Yamaha retailers and service personnel. It provides detailed safety warnings, electro‑static discharge prevention, and step‑by‑step disassembly procedures for the DVD‑S1800 player.

The document also includes full specifications, wiring diagrams, error‑message tables, remote‑control key codes, and troubleshooting guides such as HDMI and video reset procedures.

What's inside

Contents
Prevention of Electrostatic Discharge
Disassembly Procedures
Locale Management Information
Specifications
Troubleshooting
Remote Control
Error Message
Front Panel
Replacement Parts List

Specifications

Dimensions (W × H × D)	435 × 87 × 284.5 mm
Weight	3.3 kg
Power consumption	Approx. 21 W
Video output (DVD‑video)	Cinch (yellow) x 1

Frequently asked questions

What is the maximum allowed leakage current after service?

Leakage current must not exceed 0.5 mA.
