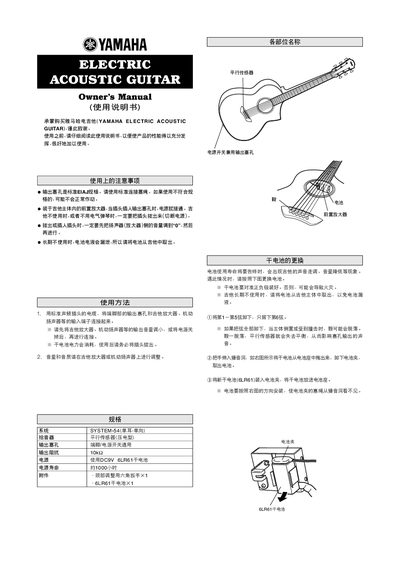

Yamaha electric guitar user manual, introduces the characteristics of the electric guitar, how to use, precautions and so on
The manual begins with a parts diagram and important safety precautions, reminding users to set the volume to zero before disconnecting the guitar or removing the battery. It also explains the correct use of the pre‑amp and output jack, and warns against using non‑standard connectors.
Later sections describe how to replace the 6LR61 battery, adjust volume, and connect the instrument to an amplifier. The specifications list the system model, output impedance, power source, and required battery type. This manual is written in Chinese.
| System | SYSTEM-54 (single‑ear, single‑direction) |
|---|---|
| Output Impedance | 10 kΩ |
| Power Source | DC 9 V |
| Battery Type | 6LR61 |
| Output Jack | Standard EIAJ connector |
Set the volume control on the guitar’s pre‑amp to "0" before unplugging or removing the battery.
The guitar uses a DC 9 V power source supplied by a 6LR61 battery.
The output jack follows the standard EIAJ specification.
