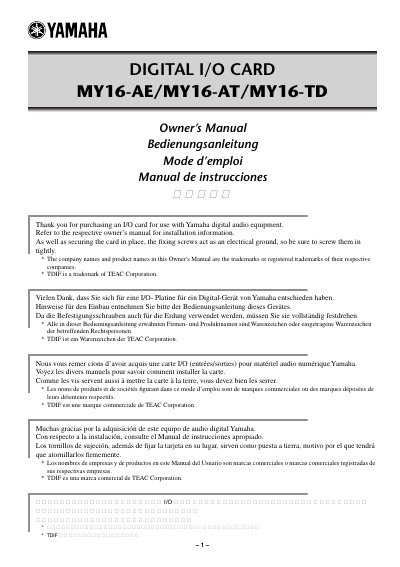

This document is the owner's manual for the I/O card of Yamaha digital audio equipment, providing installation information and product features.
The Yamaha MY16 series are 16‑channel digital I/O cards for professional audio equipment. The MY16‑AE supports the AES/EBU format, the MY16‑AT supports ADAT, and the MY16‑TD uses the TDIF‑1 format. The manual provides safety warnings, FCC/IC compliance information, connector pin assignments, and configuration details for each model.
Key sections include precautionary handling instructions, FCC Class B compliance notes, a table of technical specifications, and guidance on setting the configuration switches for the MY16‑TD. The document also lists Yamaha models that are not compatible with these cards and describes the double‑channel mode that limits the available inputs and outputs.
| Format | AES/EBU (MY16‑AE), ADAT (MY16‑AT), TDIF‑1 (MY16‑TD) |
|---|---|
| Input/Output channels | 16 in / 16 out |
| Connectors | D‑sub 25‑pin ×2, Optical ×4 |
| Word length & Sampling frequency | 24 bit, 44.1/48 kHz (88.2/96 kHz in double‑channel mode) |
