German Pool's new gas water heater GPS13 is the first of its kind in Hong Kong with a slimline 120mm external body. The model also features 3 automatic switching gas control, which is more stable and energy-efficient than conventional gas water heaters. In addition, the GPS13 has a full electronic automatic control, which is easy to operate and provides the most comfortable bathing experience.
The GPS13 gas water heater from German Pool features an ultra‑thin 120 mm body design, making it suitable for Hong Kong bathrooms. It incorporates a three‑stage automatic gas‑fire control for stable, energy‑saving hot‑water supply, with a temperature range of 30 °C to 65 °C.

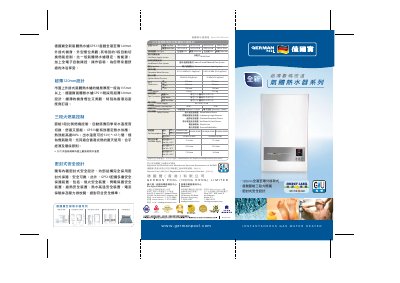

The unit includes sealed safety mechanisms such as flame‑failure protection, lightning surge protection, over‑heat prevention, high‑temperature limit, electric fuse, and pressure‑relief valve. It supports LPG and Town Gas, offers both back‑flue and top‑flue options, and operates on AC 220 V/50 Hz with low electric consumption. This manual is written in Chinese.
| Body thickness | 120 mm |
|---|---|
| Height | 515 mm |
| Width | 330 mm |
| Depth | 138 mm |
| Weight | 11.5–12.5 kg |
| Power supply | AC 220 V / 50 Hz |
| Electric consumption | 40 W / 33 W |
| Operating water pressure | 0.01–0.8 MPa |
| Supported gas types | LPG, Town Gas |
| Hot water temperature range | 30 °C – 65 °C |
| Maximum hot water flow | 12 L/min |
| Control method | Hydraulic or Electronic |
| Flue options | Back Flue, Top Flue |
The GPS13 has an ultra‑thin body thickness of 120 mm.
It includes a flame‑failure safety device, lightning surge protector, overheat prevention device, hot‑water high‑temperature limit device, electric fuse, and pressure‑relief valve.
The unit operates with water pressure from 0.01 MPa up to 0.8 MPa.
It can be used with LPG and Town Gas.
