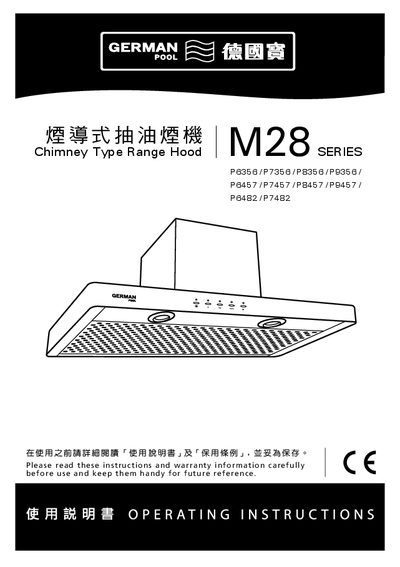

M28 series chimney type range hood instruction manual, introduces the structure, installation, operation, cleaning and maintenance of the product.
This manual explains how to safely install, operate, and maintain the German Pool M28 chimney‑type range hood. It includes product structure diagrams, wiring details, cleaning procedures, troubleshooting tips, and technical specifications for all M28 variants.
The document also outlines warranty terms, registration instructions, and contact information for German Pool (Hong Kong) Limited, ensuring users can obtain support and service when needed. This manual is written in Chinese.
| Model | M28-P6356 |
|---|---|
| Power | 280 W |
| Lighting | 2 x 20 W |
| Motor Speed | 2,800 R.P.M. |
| Exhaust Flow | 1,260 m³/hr |
| Exhaust Outlet Diameter | Ø 152 mm / 6" |
| Dimensions (H×W×D) | 316 mm × 600 mm × 356 mm |
| Net Weight | 11.5 kg |
| Patent No. | HK1040354 |
The appliance should be positioned 700 ± 50 mm above the cooking range.
German Pool offers a 1‑year full warranty and a 10‑year motor warranty for the range hood.
A 6‑inch (152 mm) diameter exhaust pipe must be used.
