The document introduces the features and characteristics of the Philips 170B7 ultra-convenient display, such as SmartManage remote display management, Perfect Panel™ guarantee, comprehensive convenience features, and excellent display performance.

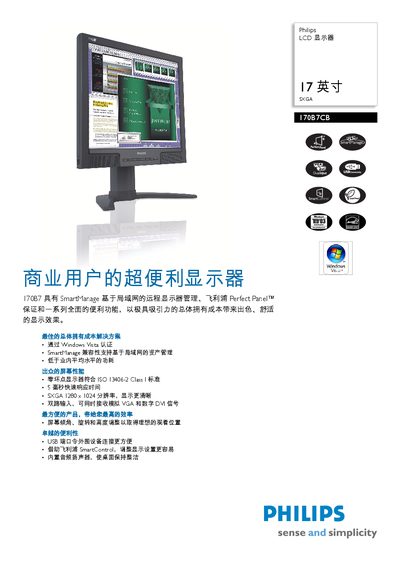

This manual describes the Philips 170B7CB 17‑inch SXGA LCD monitor. It lists the display specifications, power consumption, and compliance standards, and explains how to adjust tilt, swivel, height and other ergonomic settings.
The document also covers supported interfaces (VGA, DVI, USB 2.0, 3.5 mm audio), SmartManage remote‑management compatibility, and optional accessories such as the Super Ergo Base. Safety and environmental information are included at the end of the guide. This manual is written in Chinese.
| Panel size | 17 inches / 43 cm |
|---|---|
| Resolution | 1280 × 1024 pixels (SXGA) |
| Brightness | 300 cd/m² |
| Contrast ratio | 800:1 |
| Response time | 5 ms |
| Viewing angle | 176° (H) / 71° (V) |
| Input interfaces | VGA, DVI, USB 2.0, 3.5 mm stereo audio |
| Power consumption (typical) | 33 W |
| Standby power | < 1 W |
The monitor provides dual inputs: VGA and digital DVI.
Yes, the monitor is compatible with SmartManage for remote management.
The typical power consumption is 33 W, with standby power below 1 W.
