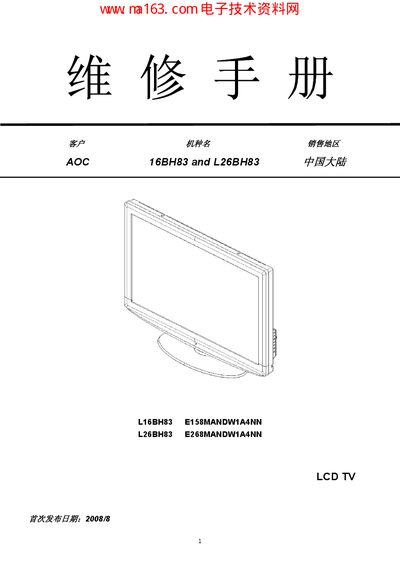

This document is a maintenance manual, which introduces the technical specifications, operating instructions, factory mode adjustment, fault handling process, etc. of AOC 16BH83 and L26BH83 LCD TVs.
This service manual provides safety and precaution information, technical specifications, operation instructions, factory‑mode adjustments, fault‑handling procedures, electrical diagrams, exploded views and a full parts list for the AOC 16BH83 (15.6") and L26BH83 (26") LCD televisions. It is intended for qualified service technicians performing maintenance, repair or component replacement.
The document includes detailed wiring diagrams, step‑by‑step instructions for switching input sources, volume control, menu navigation, and a comprehensive bill of materials. All safety warnings, such as keeping the unit away from water, using the correct power plug and ensuring proper grounding for external antennas, are emphasized throughout. This manual is written in Chinese.
| Screen size (diagonal) | 15.6" (396 mm) for 16BH83, 26" (660 mm) for L26BH83 |
|---|---|
| Power input | AC100‑240 V, 50/60 Hz |
| Power consumption | <55 W (16BH83), <150 W (L26BH83) |
| Operating temperature range | +5 °C to +35 °C |
Use the ‘+’ or ‘‑’ buttons on the remote or front panel to increase or decrease the sound level.
