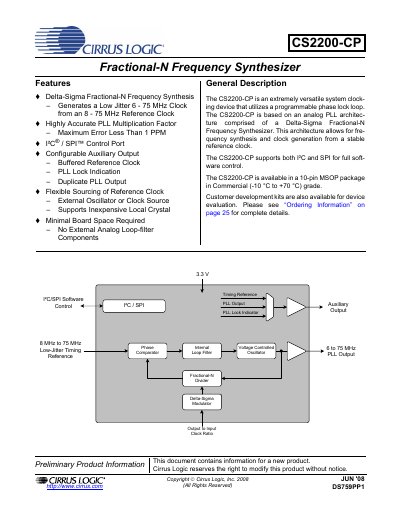

The CS2200-CP is a versatile system clock‑generating device that uses a programmable phase‑locked loop to produce low‑jitter clocks from an 8‑75 MHz reference. It supports both I²C and SPI interfaces and is offered in a 10‑pin MSOP package for commercial temperature ranges.
The handbook includes a pin‑description table, typical connection diagram, detailed electrical characteristics, architecture overview, application notes, control‑port timing specifications, register maps, package dimensions, ordering information, and revision history.
| Supply Voltage (VD) – Minimum | 3.1 V |
|---|---|
| Supply Voltage (VD) – Typical | 3.3 V |
| Supply Voltage (VD) – Maximum | 3.5 V |
| Ambient Operating Temperature (Commercial Grade) | -10 °C to +70 °C |
| Power Supply Current (unloaded, typical) | 12 mA |
| Power Dissipation (unloaded, typical) | 40 mW |
| PLL Clock Output Frequency | 6 – 75 MHz |
| Reference Clock Input Frequency | 8 – 75 MHz |
| Period Jitter (RMS) | 70 – 150 ps |
| Package Type | 10‑pin MSOP |
The PLL output exhibits a period jitter of 70 ps to 150 ps RMS.
Commercial‑grade devices are rated for ambient temperatures from –10 °C to +70 °C.
