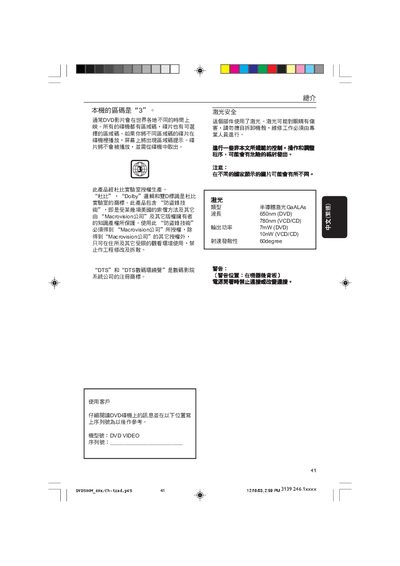

This is the user manual for DVD player
This manual explains how to install and operate the Philips DVD590M DVD player. It covers safety warnings, region‑code handling, laser‑head precautions, and basic functions such as play, pause, stop, and menu navigation.
The guide also details connections to TVs, audio systems, and other devices, explains NTSC/PAL conversion, parental‑lock settings, and provides a full list of specifications and a troubleshooting section for common problems. This manual is written in Chinese.
| Laser type | 半導體激光 GaAlAs |
|---|---|
| Wavelength | 650 nm (DVD), 780 nm (VCD/CD) |
| Output power | 7 mW (DVD), 10 nW (VCD/CD) |
| Supported disc formats | DVD, VCD, SVCD, CD, MP3 CD, DVD+R, DVD+RW |
| Video output level (S‑video) | 1 Vpp to 75 Ω |
| Dimensions (W×H×D) | 228 mm × 56 mm × 296 mm |
| Weight | ≈ 2.32 kg |
The player will display a region‑code warning and will not play the disc; you must remove the disc.
Open the battery compartment, remove the old CR2025 cell, insert a new CR2025 with the “+” side up, and push the compartment back until you hear a click.
Connect the DVD player’s Y‑Pr‑Pb (component) output to the TV’s Y‑Pr‑Pb input, then select the appropriate video mode on the TV.
Check that the power cord is correctly connected and press the standby button on the player.
