XC-ST70/70CE is a small, lightweight, high-quality monochrome camera module that uses a 2/3-inch CCD and has an external triggering shutter function, which can capture high-speed moving objects to meet the needs of high-level image inspection.

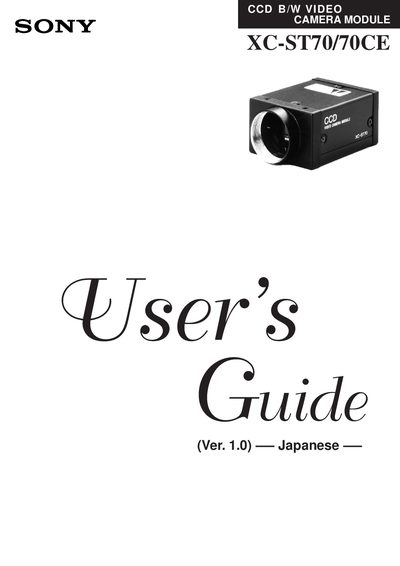

This guide describes the XC-ST70/70CE black‑and‑white video camera module, a compact, lightweight CCD camera designed for machine‑vision applications. It outlines the module’s main features such as a 273‑inch interline‑transfer CCD, external trigger shutter, and robust vibration resistance.
The manual covers system configuration, connection diagrams, detailed specifications, and how to operate the electronic shutter, set sync modes, and select compatible C‑mount lenses. It also includes timing charts for output waveforms and external trigger modes, as well as physical dimensions and environmental limits. This manual is written in Japanese.
