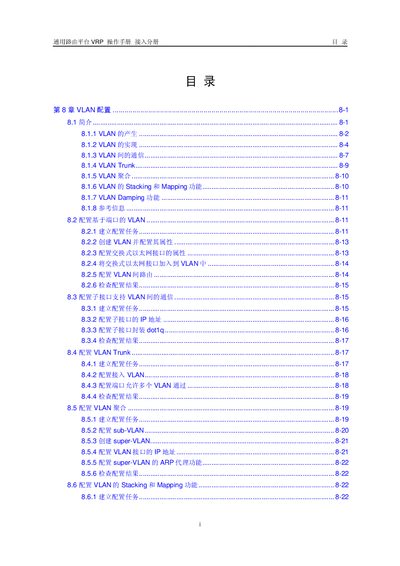

This manual provides detailed instructions for configuring VLANs on the VRP (Versatile Routing Platform). It covers basic concepts, VLAN creation, port‑based and sub‑interface VLAN setups, trunking, aggregation, stacking, mapping, and damping functions.
The document also includes maintenance procedures, example configurations, and a fault‑handling section that describes common errors such as failures when converting a VLAN to a Super‑VLAN or removing VLANs from trunk ports. This manual is written in Chinese.
| 802.1Q Tag Type | 0x8100 indicates a VLAN frame |
|---|---|
| VID Length | 12 bits for VLAN ID |
Ports are classified as Access, Trunk, Hybrid, or Q‑in‑Q based on whether they recognize 802.1Q tagged frames.
