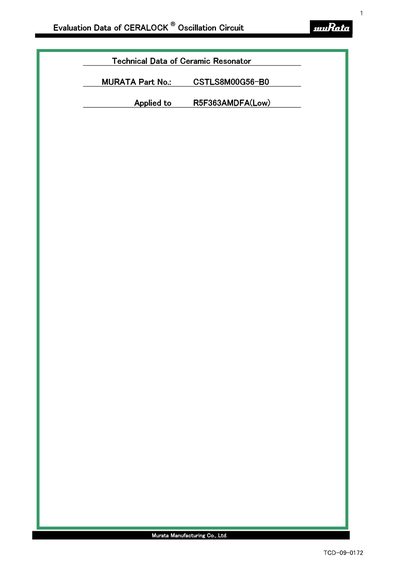

Evaluation Data of CERALOCK Oscillation Circuit MURATA Part No.: CSTLS8M00G56-B0 Applied to R5F363AMDFA(Low) Technical Data of Ceramic Resonator Manual

This datasheet provides evaluation data of CERALOCK® oscillator circuit, which uses Murata's CSTLS8M00G56-B0 ceramic resonator and can be used in R5F363AMDFA(Low) IC.

Brand: Evaluation
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 8
File format: PDF
File size: 174 KB
Published: 28 December, 2011
Updated: 30 September, 2023
MD5 checksum: 48FA63567E7B9B5760F97031221D2C7C
PDF: Evaluation Data of CERALOCK Oscillation Circuit MURATA Part No.: CSTLS8M00G56-B0 Applied to R5F363AMDFA(Low) Technical Data of Ceramic Resonator Manual PDF

About this manual

This document provides technical data, test results and performance characteristics of the Murata CSTLS8M00G56-B0 ceramic resonator (CERALOCK® Oscillation Circuit). It includes supply voltage range, temperature range, load capacitance, and measured oscillation frequency for the resonator when used with the R5F363AMDFA(Low) microcontroller.

Key sections cover the resonator specifications, waveform measurements, rise‑time analysis, frequency‑correlation data, and a comparison table of measured parameters such as VIL, VIH, rise time and start‑up voltage. The data help designers verify that the part meets required oscillation and stability criteria.

What's inside

Technical Data of Ceramic Resonator
Test Data
Appendix 1: Rise Time
Appendix 2: Frequency Correlation
Comparison Table
Frequency Correlation Data

Specifications

Part Number	CSTLS8M00G56-B0
Temperature Range	-40 to +85 °C
Load Capacitance (C1)	47 pF
Load Resistance (Rf)	1 MΩ
Load Resistance (Rd)	680 Ω

Frequently asked questions

What temperature range can the resonator operate in?

It is rated for temperatures between –40 °C and +85 °C.
