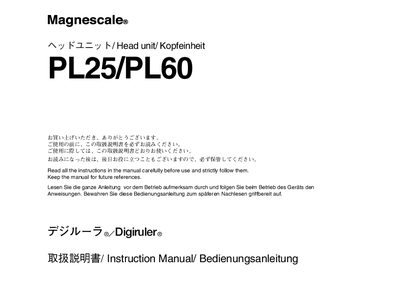

This manual describes the Magnescale PL25 and PL60 non‑contact head units used together with compatible scale units (SL110, SL130, SL331). It explains safety precautions, proper installation, cable handling, and maintenance to ensure reliable position and displacement measurement.
Key sections include general safety warnings, detailed mounting procedures with torque specifications, clearance requirements, scale‑unit dimensions, technical specifications such as minimum resolution, and warranty terms for the product. This manual is written in Japanese.
| Minimum resolution | PL25: 10 µm, PL60: 5 µm |
|---|---|
| Maximum head‑to‑scale clearance (PL60/SL331) | 0.8 mm |
The PL25 head unit has a minimum resolution of 10 µm, while the PL60 head unit can resolve down to 5 µm.
The clearance must be 0.8 mm or less.
