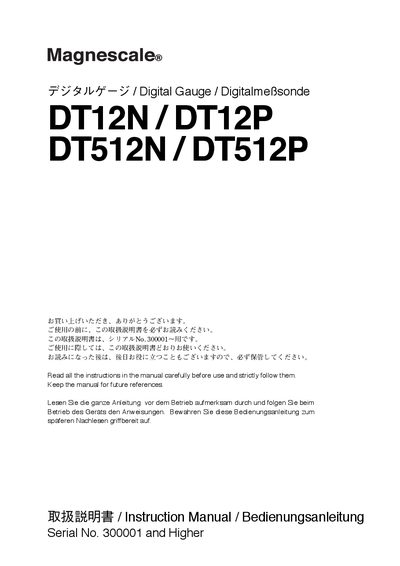

This is a DT12N / DT12P 取扱説明書 / Instruction Manual / Bedienungsanleitung user manual, which provides detailed instructions on the product's functions and features.
The DT12 series are Class A digital measurement devices used for precise linear displacement measurement. The manual covers general safety, operating cautions, mounting methods, technical specifications, and optional accessories for the four model variants.
Key sections include general precautions, mounting instructions with torque values, calibration interval, environmental limits, and a full specification table. The document also lists optional accessories such as the DZ176 air lifter and ferrite core for noise suppression.
| Measuring range | 12 mm / 0.5 in |
|---|---|
| Resolution (LT10 series) | 0.005 mm / 0.0002 in |
| Resolution (LT11 series) | 0.004 mm / 0.0007 in |
| Measuring force – downward (DT12N/DT512N) | 0.9 + 0.5 N |
| Measuring force – lateral (DT12N/DT512N) | 0.8 + 0.5 N |
| Measuring force – upward (DT12N/DT512N) | 0.7 + 0.5 N |
| Measuring force (DT12P/DT512P) | ≤ 1.7 N |
| Accuracy (DT12N/DT12P) | 0.01 mm |
| Accuracy (DT512N/DT512P) | 0.006 mm |
| Operating temperature | up to 50 °C |
| Storage temperature | -10 °C to 60 °C |
| Cable length | 2 m / 6.56 ft |
| Power consumption | 0.08 W |
| Mass (DT12P/DT512P) | 80 g |
| Protection class (DT12P/DT512P) | IP64 |
| Minimum lifetime | 5 million cycles |
| Mounting torque (holder) | 0.18 – 0.23 Nm |
| Feeler tightening torque | 0.05 – 0.06 Nm |
The manual recommends a calibration interval of one year.
A strong magnetic source should be at least 10 cm (3.94 in) away from the measuring unit.
Mount the unit using the #4.2 hole or a holder, applying a torque of 0.18 – 0.23 Nm and keeping the mounting parallelism within 0.2 mm per 100 mm.
Yes, they are equipped with dust‑proof bellows, but they are not completely water‑proof.
