TC7WH34FU/FK is a triple non-inverter produced by Toshiba, which has the characteristics of high speed, low power consumption, high noise margin, wide supply voltage range, balanced delay time, etc.
The TC7WH34FU and TC7WH34FK are Toshiba CMOS triple non‑inverter digital integrated circuits designed for high‑speed operation with balanced propagation delays. The device features low power consumption, wide supply voltage range, and input tolerant up to 5.5 V.

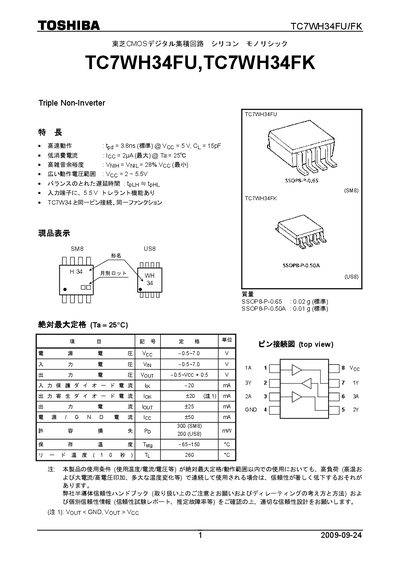

The datasheet provides detailed DC and AC characteristics, pin‑connection diagrams, package dimensions for SSOP8‑P‑0.65 (FU) and SSOP8‑P‑0.50A (FK), as well as handling and reliability guidelines for safe use in typical electronic equipment. This manual is written in Japanese.
| Propagation delay (tpd) | 3.8 ns (standard) @ Vcc = 5 V |
|---|---|
| Supply voltage range | 2.0 V to 5.5 V |
| Power dissipation (Pp) | 200 mW |
| Storage temperature (Ts) | -65 °C to 150 °C |
| Package mass (FU) | 0.02 g (standard) |
The device operates from 2.0 V to 5.5 V.
The typical propagation delay is 3.8 ns at a 5 V supply.
The maximum power dissipation is 200 mW.
