TC74AC157P/F/FT is an ultra-fast CMOS multiplexer produced by Toshiba. It has the characteristics of low power consumption and high speed, and is suitable for various electronic devices.
The TC74AC157 is a high‑speed CMOS quad 2‑channel multiplexer with low power consumption and wide operating voltage range. It features four independent 2‑input digital multiplexers sharing common select and strobe inputs.

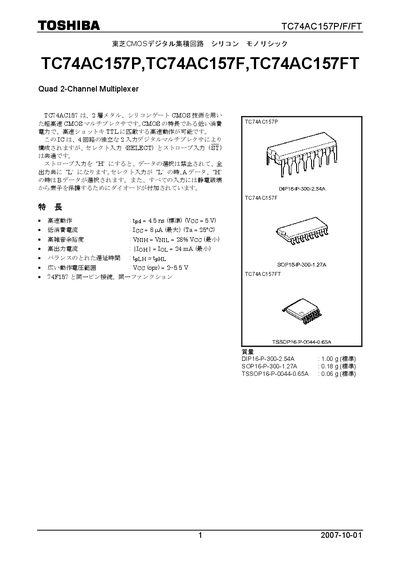

The document provides absolute maximum ratings, electrical characteristics, package dimensions for DIP16, SOP16 and TSSOP16, and handling precautions for reliable integration into electronic systems. This manual is written in Japanese.
| Operating voltage range | 2.0 V – 5.5 V |
|---|---|
| Typical propagation delay (tpd) | 45 ns (typ) at Vcc = 5 V |
| Supply current (Icc) | 8 nA (max) at Ta = 25 °C |
| Output high current (Ioh) | 24 mA (min) |
| Package types | DIP16, SOP16, TSSOP16 |
The device operates from 2.0 V to 5.5 V.
Typical propagation delay (tpd) is 45 ns at a 5 V supply.
It is offered in DIP16, SOP16 and TSSOP16 packages.
The minimum guaranteed Ioh is 24 mA.
