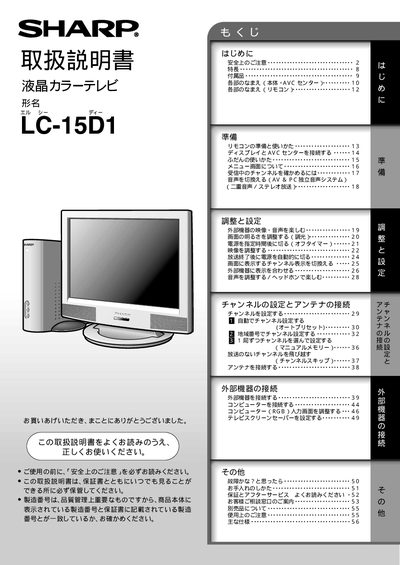

Instruction manual for LC-15D1 liquid crystal color TV, introducing the product's features, functions and usage methods.
This manual begins with safety notices, explaining the hazards of improper power use, water exposure, and foreign objects. It then guides the user through preparation, remote‑control setup, and connecting the display to the AVC Center.
Subsequent sections cover everyday operation such as menu navigation, channel tuning, audio switching, brightness adjustment, timer functions, and external device connections. The final parts describe troubleshooting, cleaning, warranty information, and a list of optional accessories, followed by the main technical specifications of the television. This manual is written in Japanese.
| Screen size | 15 inches (≈229.0 mm × 305.3 mm) |
|---|---|
| Panel type | TN transmissive LCD panel |
| Resolution | 1,024 × 768 (2,359,296 dots) |
| Viewing angle | 160° horizontal / 160° vertical |
| Backlight | Internal fluorescent lamp |
| Power consumption | 50 W (operating), 1 W (standby) |
| Audio/Video inputs | Analog RGB mini‑D‑sub 15‑pin, component, composite, HDMI not listed |
Select the brightness (調光) setting in the menu; see page 20 for the adjustment procedure.
Connect external devices to the AVC Center ports using the listed video and audio inputs; see sections on external device connection (pages 39‑46).
The television consumes 50 W during operation and 1 W in standby mode.
