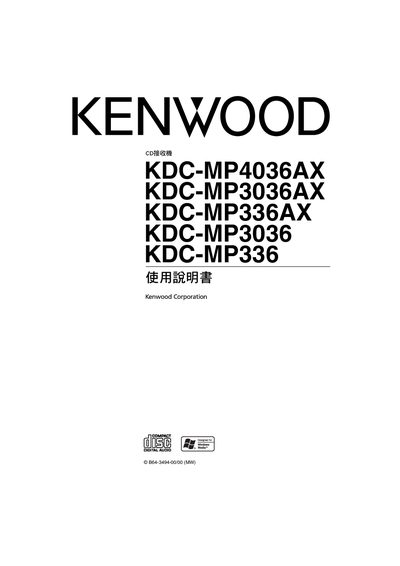

This document provides instructions and features of CD receivers KDC-MP4036AX, KDC-MP3036AX, KDC-MP336AX, KDC-MP3036, and KDC-MP336.
This manual covers safety precautions, proper installation, and wiring requirements for the Kenwood KDC-MP4036AX (also applicable to KDC-MP3036AX, KDC-MP336AX, KDC-MP3036, and KDC-MP336). It explains how to power the unit, connect external devices, and avoid damage by following the detailed handling instructions.
The document also describes the operation of the DAB tuner, audio settings, supported CD and audio formats, and provides a full list of technical specifications such as frequency ranges, power requirements, dimensions, and output performance. This manual is written in Chinese.
| FM Frequency Range | 87.5 MHz – 108.0 MHz |
|---|---|
| Power Supply | 11 V – 16 V (12 V recommended) |
| Dimensions (W × H × D) | 182 mm × 53 mm × 155 mm |
| Weight | 1.40 kg |
| Maximum Output Power | 50 W × 4 |
| Input Impedance | 100 kΩ |
| Supported Audio Formats | MP3, WMA, CD‑R, CD‑RW |
No, 8 cm (3‑inch) CDs are not supported and may cause damage.
The unit should be powered with a grounded 12 V supply, within an 11 V – 16 V range.
The receiver can play MP3, WMA, CD‑R and CD‑RW discs.
