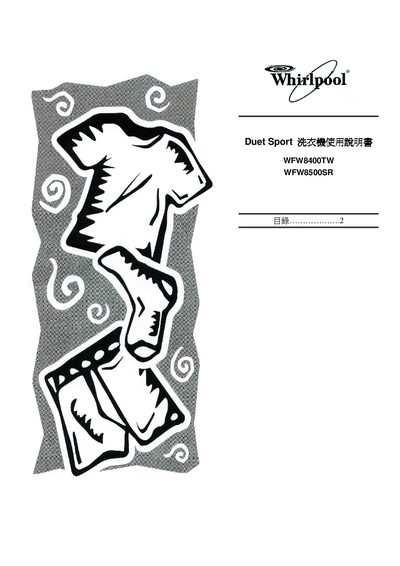

This manual provides information on the safety, installation, use, and maintenance of the Duet Sport washing machine.
This manual covers everything needed to install and use the Whirlpool Duet Sport front‑load washers, including safety warnings, required tools, site preparation, electrical and water connections, and step‑by‑step installation instructions. It also explains how to operate the machine, select wash cycles, perform routine cleaning, and troubleshoot common problems.
Additional sections describe warranty information, parts ordering, and recommended maintenance practices to keep the washer performing reliably for years. This manual is written in Chinese.
| Model | WFW8400TW / WFW8500SR |
|---|---|
| Capacity | 14 kg |
| Power Consumption | 1,150 W |
| Spin Speed | 1,100 rpm |
| Dimensions (H × W × D) | 915 × 686 × 743 mm |
| Weight | 110 kg |
| Voltage | 120 V / 60 Hz |
| Water Pressure | 0.03–0.7 MPa |
The washer must be placed on a level floor that can support up to 180 kg, with at least 1 inch clearance around it, a grounded 120 V/60 Hz outlet within 1.8 m, and water connections within 1.2 m.
Replace the inlet hoses after five years of use and record the replacement date for future reference.
Use HE high‑efficiency detergent only; do not pour detergent directly into the drum.
The washer is covered by a one‑year full‑machine warranty from the date of purchase, covering parts and labor when used according to the manual.
