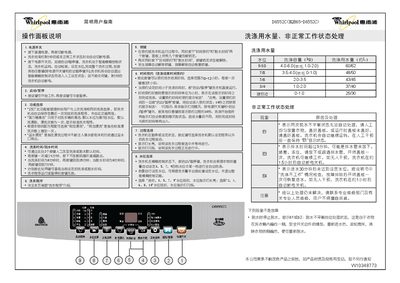

This document provides an operation panel instruction for the D6552C(XQB65-D6552C) W10348773 washing machine, including information on the water usage and troubleshooting for abnormal working conditions. The document explains the causes and solutions for E1, E3, and E4 error codes, as well as addressing other common issues. Additionally, the document includes a table of washing capacity and corresponding water usage.
This manual explains the operation panel functions, water‑level selection, time‑reservation, and the various wash programs available on the Whirlpool D6552C washing machine. It also provides step‑by‑step instructions for starting a wash, adjusting wash and spin times, and using special functions such as strong‑bucket cleaning.
The guide includes a troubleshooting section that lists common fault symptoms and their remedies, as well as the technical specifications of the appliance such as voltage, power, capacity, dimensions, and water‑pressure range. This manual is written in Chinese.
| Rated Voltage | 220V~ |
|---|---|
| Rated Input Power | 430W |
| Wash Capacity | 6.5 kg |
| Dimensions (W×D×H) | 547 mm × 559 mm × 925 mm |
| Water Pressure Range | 0.02–0.78 MPa |
It runs a cleaning cycle for the drum using a default water level (segment 7) and a single rinse to remove residue.
