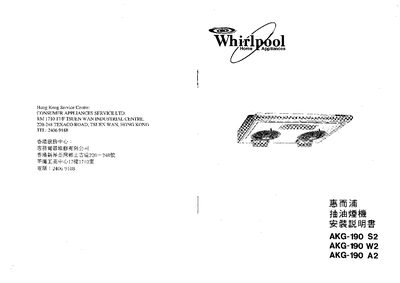

This manual provides step‑by‑step instructions for installing the AKG‑190 range hood. It details required accessories, checks before installation, recommended installation height (60‑75 cm), and proper air‑duct dimensions (6‑inch diameter). Safety warnings such as grounding, handling of damaged cords, and fire‑risk precautions are also included.
Additional sections cover grille removal and re‑installation, positioning of the exhaust tube, and technical specifications such as motor power, electrical rating, and dimensions. The document ends with a circuit diagram and packing details.
| Transmission style | Twin motors |
|---|---|
| Net weight | 42 kg |
| Gross weight | 14 kg |
| Outlet pipe diameter | 150 mm |
| Dimensions (L×W×H) | 520 x 100 x 895 mm |
| Lighting system power | 60 W |
| Electrical specification | 220V~240V 50Hz |
| Motor load | 140 W |
A 6‑inch diameter air duct is recommended.
