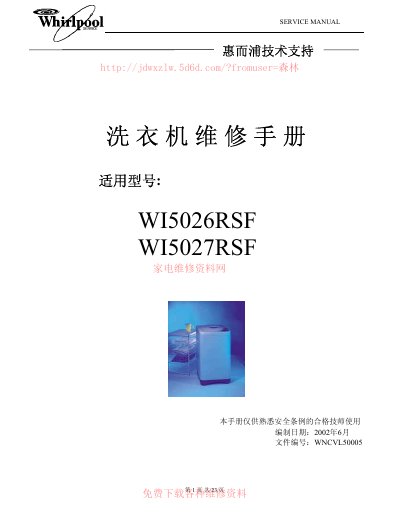

This document is a maintenance manual for the whirlpool washing machine WI5026RSF WI5027RSF. It mainly introduces the safety issues, specifications, installation instructions, electrical circuit diagrams and brief instructions, fault retrieval and maintenance precautions, key technical instructions, etc.
The manual provides safety precautions for qualified technicians, including grounding requirements, power disconnection, and prohibition of illegal parts. It also details installation steps such as positioning, leveling, and connecting water and drain hoses.
Technical sections include a full specifications table, electrical wiring diagrams, troubleshooting procedures, and a comprehensive parts list with component numbers for repair and maintenance. This manual is written in Chinese.
| Rated voltage / frequency | 220 V / 50 Hz |
|---|---|
| Rated heating input power | 1350 W |
| Inlet valve resistance | ≈ 4.5 kΩ |
| Drain pump resistance | ≈ 8 kΩ |
| Wash spin speed | 170 rpm |
| Spin speed (dry) | 850 rpm |
| Working water pressure | 0.02–0.78 MPa |
| Inlet hose length | 1.2 m |
| Drain hose length | 0.83 m |
The drain hose must not be installed higher than 8 cm above the machine to avoid drainage problems.
