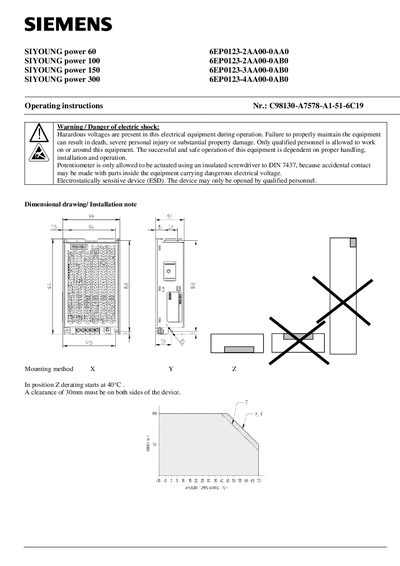

SIEMENS SIYOUNG power 60 SIYOUNG power 100 SIYOUNG power 150 SIYOUNG power 300 6EP0123-2AA00-0AA0 6EP0123-2AA00-0AB0 6EP0123-3AA00-0AB0 6EP0123-4AA00-0AB0 Manual

About this manual

This manual contains important safety information for the SIYOUNG Power series, including warnings about hazardous voltages, the requirement that only qualified personnel perform installation or maintenance, and the use of insulated tools when adjusting the potentiometer. Installation must follow IEC 60364 and EN 50178, with a protective fuse and disconnect device provided.

Technical specifications are listed for input voltage (230 V AC, 187‑264 VAC range), line frequency (47‑63 Hz), output voltage (+24 V DC), output current (2.5 A‑12 A depending on model), and power ratings (60 W‑288 W). Mechanical data such as dimensions (166 × 99 × 50 mm), weight (0.8 kg), and protection class (IP20) are also provided, along with certification marks (CE, EN standards).

What's inside

• Safety warnings
• Installation and assembly
• Electrical specifications
• Mechanical dimensions
• Performance specifications
• Parallel operation
• Approvals and certifications

Specifications

Frequently asked questions

What supply voltage is required for the SIYOUNG Power unit?

The unit requires a 230 VAC supply, connected in accordance with IEC 60364 and EN 50178.

What safety steps must be taken before installing the unit?

The mains switch must be turned off and locked out, and only qualified personnel may perform installation or maintenance, using an insulated screwdriver for the potentiometer.

What is the output voltage of the SIYOUNG Power supplies?

The supplies provide a regulated +24 V DC output that is potential‑free and protected against short‑circuit and open‑circuit conditions.
