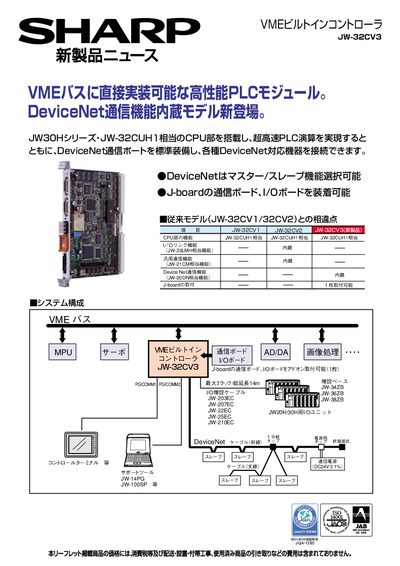

JW-32CV3 is a new high-performance PLC module that features the CPU of the JW30H series and JW-32CUH1, providing ultra-fast PLC processing. It also has a built-in DeviceNet communications port for connecting to various DeviceNet devices.
The JW‑32CV3 is a VME‑bus compatible PLC module that incorporates a CPU equivalent to the JW‑32CUH1, providing fast PLC calculations and built‑in DeviceNet communication. It supports both master and slave modes, and can be expanded with additional communication and I/O boards.
The leaflet lists detailed technical specifications, including address and data bus widths, memory capacities, power requirements, dimensions, and supported communication speeds. It also provides safety notes, warranty information, and contact details for Sharp's support services. This manual is written in Japanese.
| CPU Compatibility | JW‑32CUH1 equivalent |
|---|---|
| Address Bus Width | 24‑bit (A28‑A0) |
| Data Bus Width | 16‑bit (D15‑D0) |
| Dual‑Board RAM | 2 KB |
| Relay Points | 30 720 points |
| Timer/Counter Memory | 1 024 points |
| Power Supply Voltage | DC 5 V (4.75‑5.25 V) |
| Module Dimensions | 20 mm (W) × 262 mm (H) × 188 mm (D) |
| Maximum Load | 1 A / DC 30 V, AC 2 S 0 V |
| Supported Communication Speeds | 115200‑4800 bps (various rates) |
It requires a DC 5 V supply (4.75 V to 5.25 V) from the VME bus side.
The controller provides 30 720 relay points, including special relays.
The module measures 20 mm wide, 262 mm high, and 188 mm deep.
