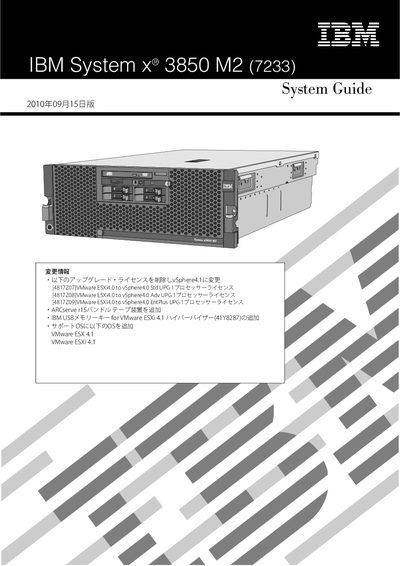

IBM System x® 3850 M2 (7233) System Guide 2010年09月15日版 introduces the features of this product, including the supported operating systems, memory, hard drives, power supplies, etc.
The IBM System x 3850 M2 (7233) is a 4U rack‑mount server that supports Intel Xeon E7 processors, up to 128 GB of DDR3 ECC memory, and multiple storage options including hot‑swap SAS/SSD drives. It offers flexible CPU configurations (up to four sockets) and a range of networking and I/O interfaces.
The server can be expanded with SMP modules for up to four nodes, optional redundant 1440 W hot‑swap power supplies, and a variety of optional accessories such as optical drives and additional storage bays. Detailed warranty, service, and contact information are also included. This manual is written in Japanese.
| Supported CPUs | Xeon E7420 (4 cores), Xeon E7450 (6 cores), Xeon X7460 (6 cores), Xeon L7445 (4 cores) |
|---|---|
| Maximum CPU sockets per node | 4 |
| Maximum memory | 128 GB (16 DIMM slots) |
| Maximum internal HDD capacity | 1.2 TB (4 drives) |
| Power supply | 1440 W hot‑swap (optional redundant) |
The server can be equipped with up to 128 GB of memory using 16 DIMM slots.
Each node supports up to four CPU sockets.
