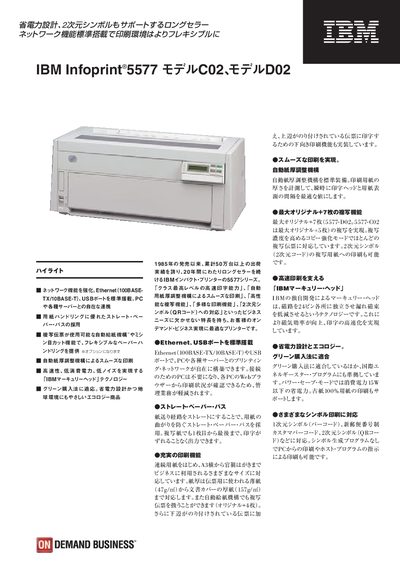

The IBM Infoprint ®5577 is a network-enabled printer with high-speed printing, automatic paper thickness adjustment, efficient copying, diversified printing, and 2D symbols (QR codes). It is suitable for various business scenarios.
The IBM Infoprint 5577 is a high‑speed impact printer designed for business use, offering fast printing, low power consumption, and eco‑friendly design. It supports a wide range of paper types and thicknesses, including automatic paper‑thickness adjustment for smooth operation.
The printer includes Ethernet (100BASE‑TX/10BASE‑T) and USB 2.0 interfaces for flexible network connectivity, and features a straight‑paper‑path for reliable print alignment. Detailed specifications, optional accessories, and service information are provided throughout the manual. This manual is written in Japanese.
| Print method | 234‑pin wired dot matrix |
|---|---|
| Power consumption (idle) | 15 W |
| Power consumption (max) | 220 W |
| Dimensions (W×D×H) | 642 mm × 210 mm × 271 mm |
| Weight | 23 kg |
| Maximum copy capacity | Original +7 copies (D02) / Original +5 copies (C02) |
The D02 model can copy up to the original plus seven copies, while the C02 model can copy up to the original plus five copies.
In power‑save mode the printer consumes 15 W or less.
