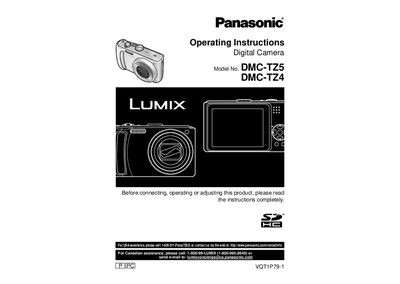

This PDF file is the operating instructions for Panasonic's DMC-TZ5 and DMC-TZ4 digital cameras
This manual explains how to safely set up and operate the Panasonic DMC‑TZ5 and DMC‑TZ4 digital cameras. It includes safety warnings, battery‑charging instructions, and guidance on inserting memory cards and using accessories. The document also covers FCC and Canadian compliance information and provides contact details for support.
The guide details the camera’s features such as Intelligent Auto, 10× optical zoom, motion‑picture mode, and various playback options. It contains a full index of menu functions, specifications, optional accessories, and warranty information to help users get the most out of their cameras.
| Power Source | DC 5.1 V |
|---|---|
| Power Consumption (recording) | 1.3 W (DMC‑TZ5) / 1.2 W (DMC‑TZ4) |
| Effective Pixels | 9.1 MP (DMC‑TZ5) / 8.1 MP (DMC‑TZ4) |
| Optical Zoom | 10× (28 mm‑280 mm equivalent) |
| Digital Zoom | Maximum 4× |
| ISO Sensitivity | Auto / 100 / 200 / 400 / 800 / 1600 |
| Shutter Speed | 8 s to 1/2000 s |
| LCD Monitor | 3.0‑inch TFT LCD (≈460,800 dots) on DMC‑TZ5 |
The camera is powered by a 3 A lithium‑ion/polymer rechargeable battery.
It provides a 10× optical zoom, equivalent to a 28 mm‑280 mm focal length range.
When recording, the DMC‑TZ5 uses 1.3 W and the DMC‑TZ4 uses 1.2 W.
