This document is a declaration of conformity for the Nokia Wireless Audio Gateway AD-42W. The product complies with Directive 1999/5/EC. The document also mentions trademarks and other related information.

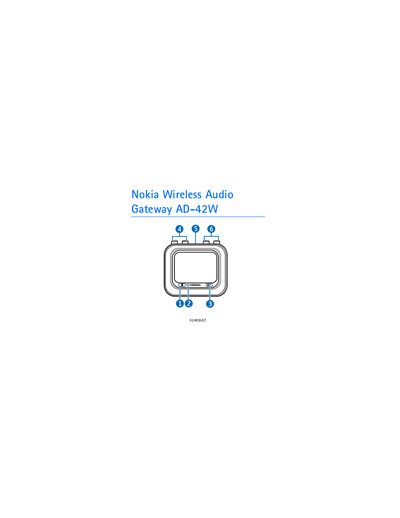

The AD-42W gateway lets you connect a standard home stereo system to a Bluetooth‑enabled music player or headset. The manual explains safety precautions, Bluetooth technology basics, and the device’s parts and power requirements.
Detailed steps cover pairing the gateway with music players or headsets, connecting RCA cables to a stereo, switching the unit on and off, and maintaining the device for reliable operation.
| Bluetooth class | Class 1 |
|---|---|
| Bluetooth specification | 2.0 |
| Supported profile | Advanced Audio Distribution Profile (A2DP) 1.0 |
| Supported profile | Generic Audio/Video Distribution Profile (GAVDP) 1.0 |
| Maximum paired devices | 8 |
| Power connector types | AC-3, AC-4, DC-4 chargers |
Press and hold the pairing key until the indicator light is continuously shown, then select the gateway on the music player and enter the Bluetooth passcode 0000.
The gateway can be paired with up to eight Bluetooth devices, though only one device can be active at a time.
Plug the charger cable into the power connector at the back of the gateway and connect the charger to a wall outlet.
The gateway is a Bluetooth Class 1 device with an operating range of up to 100 meters (about 300 feet).
