The Philips PET716 portable DVD player allows you to enjoy DVD and DivX® movies anytime, anywhere, and relax and watch movies on the 7-inch TFT LCD screen. It supports playback of DVD, DivX®, MPEG4 movies, MP3-CDs, and CDs, and also allows you to view JPEG photos at any time. It features a high-quality visual experience with a 7-inch TFT color LCD display, 16:9 widescreen format for movie viewing, built-in stereo speakers, and convenient use with a rechargeable battery that can play for up to 2 hours.

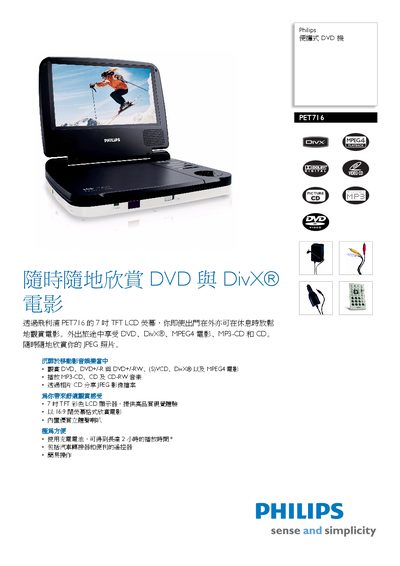

This manual describes the features and operation of the Philips PET716 portable DVD player. It includes information on supported media formats, playback functions, battery operation, and accessory connections.
Key sections cover the device specifications, audio and video output options, power requirements, and dimensions. The guide also lists the included accessories and provides basic troubleshooting tips. This manual is written in Chinese.
| Screen type | TFT LCD |
|---|---|
| Screen size | 7 inches |
| Resolution | 480 x 234 x 3 (RGB) |
| Brightness | 200 cd/m² |
| LCD panel type | Anti‑glare |
| Contrast ratio | 250:1 |
| Pixel pitch | 0.107 mm (horizontal) x 0.0370 mm (vertical) |
| Response time | 30 ms |
| Audio output power | 250 mW RMS |
| Earphone output power | 10 mW RMS |
| Signal‑to‑noise ratio (output) | >80 dB |
| Supported video formats | DVD, Picture CD, SVCD, VCD, DVD‑R/RW, MP3‑CD, CD‑R/CD‑RW, DivX, MPEG‑4 |
| Power input | DC 9 V |
| Battery playback time | ≈2 hours |
| Product dimensions (W×H×D) | 197 mm × 153 mm × 37 mm |
| Package dimensions (W×H×D) | 225 mm × 270 mm × 245 mm |
| Weight | 0.7 kg |
The device provides about 2 hours of playback time on a fully charged battery.
It supports DVD, Picture CD, SVCD, VCD, DVD‑R/RW, MP3‑CD, CD‑R/CD‑RW, DivX and MPEG‑4 formats.
The player has a 7‑inch TFT LCD screen with a resolution of 480 × 234 × 3 (RGB).
It uses a 9 V DC input for operation.
