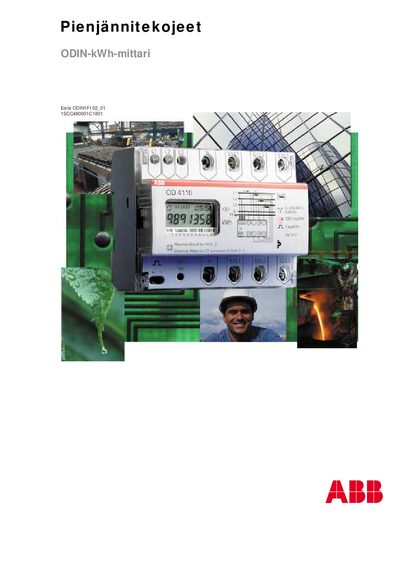

ODIN-kWh-mittari is a compact electronic energy meter for measuring active energy, which is designed to be installed in a center or in a separate housing on a DIN rail. It is easy to install and use.
The ODIN meter is a compact electronic energy meter designed for installation in a DIN‑rail enclosure. It is highlighted for simplicity, with clear markings, sturdy connector screws and an easy‑to‑read LCD display. The manual includes detailed text and pictures describing the installation process and operation.
Technical data such as voltage rating, current limits, pulse output, accuracy, and environmental specifications are listed, along with wiring diagrams, connection examples and a list of optional accessories. Dimensions and mounting details are also provided.
| Voltage rating | 3×230/400 V AC |
|---|---|
| Pulse output | 100 pulses/kWh |
| Frequency | 50/60 Hz |
| Enclosure material | Polycarbonate |
| Standard compliance | IEC 61036 |
It outputs 100 pulses per kWh.
The meter complies with IEC 61036.
