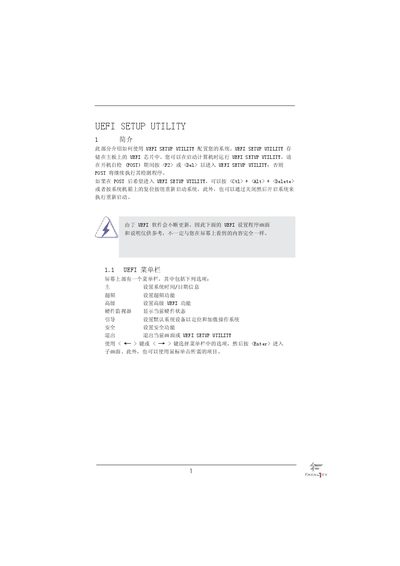

The guide introduces the UEFI Setup Utility stored in the motherboard's UEFI chip and shows how to access it by pressing F2, Del, or Ctrl+Alt+Delete during POST. It describes the main menu bar, navigation keys, and the layout of the main screen.
Detailed sections cover overclocking options, CPU and memory voltage settings, advanced configuration screens, hardware health monitoring, boot priority, security settings, and the procedures for saving, discarding, or resetting changes. This manual is written in Chinese.
| Enter UEFI Setup | Press F2 or Del during POST |
|---|---|
| Load Default Settings | F9 loads all default values |
| Save Changes | F10 saves changes and exits |
| CPU Voltage Options | Auto, Manual, Offset |
| DRAM Voltage Options | Auto, 1.196V‑2.008V |
Press during the Power‑On Self‑Test (POST) to launch the utility.
Press the F9 key to load all default values for the UEFI configuration.
Press F10 to save the changes you made and exit the utility.
