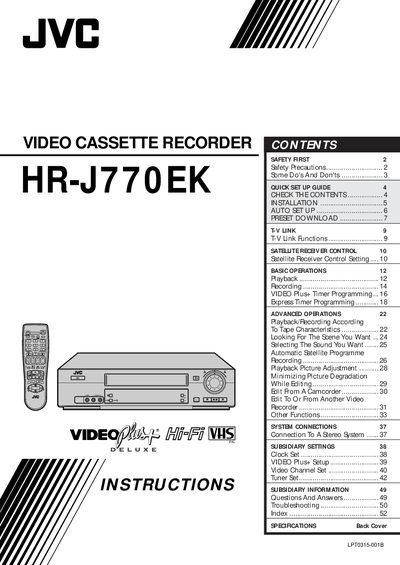

JVC HR-J770EK Video Cassette Recorder User Manual

This is the user manual for the HR-J770EK video cassette recorder

Brand: JVC
Document type: User Manual
Language: English
Pages: 56
File format: PDF
File size: 1.1 MB
Published: 13 November, 2011
Updated: 30 September, 2023
MD5 checksum: 1BE2A6B7556082E39527A5B026498D0F
PDF: JVC HR-J770EK Video Cassette Recorder User Manual PDF

About this manual

This manual covers safety precautions, quick set‑up, installation, and detailed operation of the JVC HR‑J770EK video cassette recorder. It explains how to connect the unit to a TV, perform auto set‑up, download presets, and use advanced functions such as timer recording and picture adjustment.

Additional sections include system connections, subsidiary settings, troubleshooting, and a full specifications table that lists power requirements, dimensions, and recording capabilities.

What's inside

Safety Precautions
Quick Set Up Guide
Installation
Auto Set Up
Preset Download
Basic Operations
Advanced Operations
System Connections
Troubleshooting
Specifications

Specifications

Weight	13.5 kg
Memory backup positions	99 positions (+ AUX position)
Maximum recording time (VHS PAL)	240 min with E240 video

Frequently asked questions

What is the maximum recording time for the HR‑J770EK?

The recorder can record up to 240 minutes with E240 video on VHS PAL.

How many tuner preset positions can be stored?

The unit can store 99 preset positions, plus an AUX position.

Download PDF (1.1 MB)
