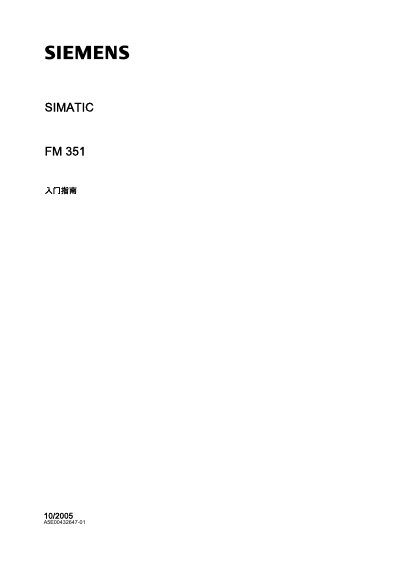

This guide provides a step‑by‑step introduction for configuring a complete functional application with the SIMATIC FM 351. It covers safety instructions, required hardware and software, and a practical example that demonstrates how to control motion on channel 1.
The manual details installation on the rack, wiring of the front connector and encoder, configuration parameters in STEP 7, basic testing procedures, integration of library blocks into a PLC program, and diagnostic troubleshooting. This manual is written in Chinese.
| Required PLC | S7‑300 station with power module and CPU |
|---|---|
| Required Software | STEP 7 V5.0 (example based on V5.0) |
| External Power Supply | 24 V DC |
| Channel Used | 1 (only this channel wired) |
| Physical Unit | mm (3 decimal places) |
| Target Range | 1,000 mm |
| Monitoring Time | 2,000 ms |
| Stable Range | 1,000 mm |
| Stable Speed | 30,000 mm/min |
