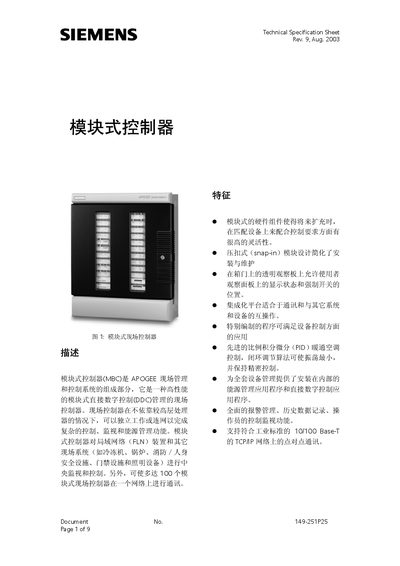

This document describes the features and characteristics of the Modular Controller (MBC) as part of the APOGEE Field Management and Control System. The MBC is a high-performance modular direct digital control (DDC) controller that can work independently or be networked with other field systems to achieve complex control, monitoring, and energy management functions. It supports central monitoring and control of FLN devices and other field systems, and allows communication between up to 100 MBCs on a network.
The MBC modular controller is a high‑performance direct digital control (DDC) device used in APOGEE building management systems. It can operate independently or be networked to manage HVAC, lighting, fire safety, access control and other field devices, supporting up to 100 controllers on a single network.\n\nThe system consists of four main hardware sections: box components (available in two sizes, MBC‑24 and MBC‑40), a power module supplying 24Vac/24Vdc, point terminal modules for sensor/actuator I/O, and an open processor (or Super Open Processor) that runs the control firmware and handles communications via RS‑232, RS‑485 and Ethernet. This manual is written in Chinese.
| CPU | Motorola 68302 |
|---|---|
| Operating Frequency | 16.67 MHz |
| Memory Capacity | 3 MB |
| Power Supply | 115 Vac 60 Hz or 230 Vac 50/60 Hz |
| Communication Interface | Dual RS‑232 ports, RS‑485 BLN 300 bps‑115.2 kbps, Ethernet 10/100Base‑T |
Up to 100 modular controllers can communicate on one network.
