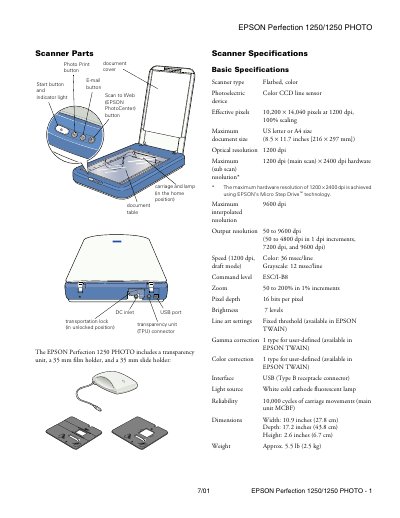

This document provides technical specifications for the EPSON Perfection 1250/1250 PHOTO scanner. It details the device's optical and output resolutions, physical dimensions, and power requirements. The scanner features a flatbed design with a color CCD line sensor and supports scanning documents up to US Letter or A4 size.
| Scanner type | Flatbed, color |
|---|---|
| Sensor type | Color CCD line sensor |
| Optical resolution | 1200 dpi |
| Maximum hardware resolution | 1200 dpi (main) x 2400 dpi (sub) |
| Maximum interpolated resolution | 9600 dpi |
| Output resolution range | 50 to 9600 dpi |
| Speed (Color, 1200 dpi) | 36 msec/line |
| Speed (Grayscale, 1200 dpi) | 12 msec/line |
| Zoom range | 50 to 200% |
| Pixel depth | 16 bits per pixel |
| Interface | USB (Type B receptacle connector) |
| Light source | White cold cathode fluorescent lamp |
| Reliability (MCBF) | 10,000 cycles |
| Dimensions (Width) | 10.9 inches (27.8 cm) |
| Dimensions (Depth) | 17.2 inches (43.8 cm) |
| Dimensions (Height) | 2.6 inches (6.7 cm) |
| Weight | Approx. 5.5 lb (2.5 kg) |
| Input voltage | DC 15.2 V |
| Rated input current | 1.2 A |
| Power consumption | Approx. 18 W |
| Power consumption (power-saving mode) | Approx. 5 W |
| Operating temperature | 41 to 95 °F (5 to 35 °C) |
| Storage temperature | -13 to 140 °F (-25 to 60 °C) |
| Operating humidity | 10% to 80% |
| Storage humidity | 10% to 85% |
| USB Revision | 1.1 |
| USB Connector type | One receptacle (Type B) |
| Transparency Unit Dimensions (Width) | 3.5 inches (88 mm) |
| Transparency Unit Dimensions (Depth) | 5.7 inches (145 mm) |
| Transparency Unit Dimensions (Height) | 2.2 inches (56 mm) |
| Transparency Unit Weight | 0.4 lb (170 g) |
| Transparency Unit Readable area | 1.4 x 1.4 inches (36 x 36 mm) |
The optical resolution is 1200 dpi.
The maximum interpolated resolution is 9600 dpi.
The speed is 36 msec/line.
The weight is approximately 5.5 lb (2.5 kg).
