Key facts
- Brand
- YOKOGAWA
- Model
- SR10
- Category
- Other
- Industry
- Industrial
- Documents
- 2
- Languages
- JA · ZH
- Last added
- 2012-03-20
Start here

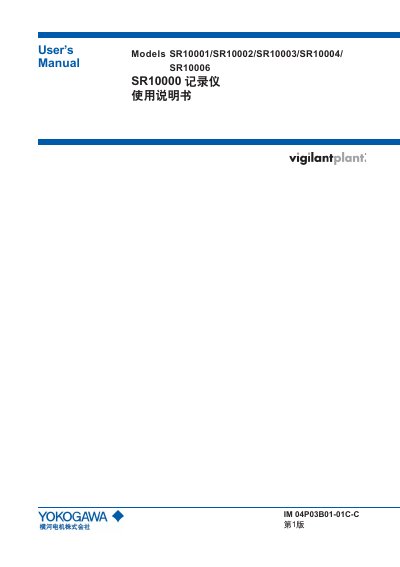

YOKOGAWA SR10001/SR10002/SR10003/SR10004/SR10006 Manual
The manual describes the functions, common setting operations, insert‑function settings, basic‑function settings, troubleshooting, maintenance, and technical specifications of the SR10000 family devices. It includes detailed chapters on how to change measurement ranges, set alarms, configure printing, and use communication interfaces.
Additional sections cover regular inspection, calibration, position adjustment, and detailed technical data such as channel counts, measurement periods, input ranges, and supported temperature sensor types. This manual is written in Chinese.
YOKOGAWA SR10 specifications
| Dimensions (W x D x H) | 144 x 144 x 17 mm |
|---|---|
| Power Supply | 100‑240 VAC, 50/60 Hz |
| Operating Temperature Range | -25 °C to 80 °C |
All YOKOGAWA SR10 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the operating temperature range of the SR10 recorder?
The recorder can operate from –25 °C up to 80 °C.
What are the physical dimensions of the SR10 recorder?
The recorder measures 144 mm × 144 mm × 17 mm.
