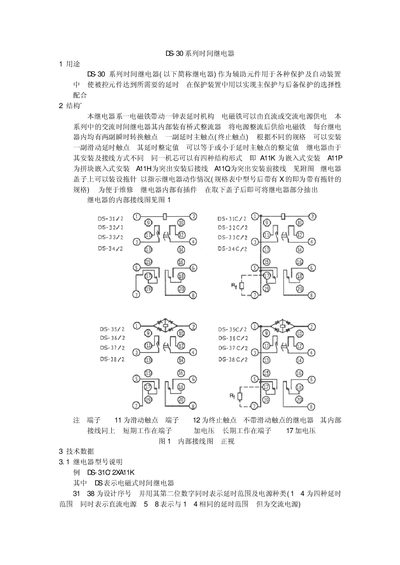

DSS DS-30 Series Time Relay User Manual
The DS-30 series time relays are auxiliary devices used in protection and automation systems to provide required delay functions. The document describes their purpose, four mounting styles, internal wiring diagram and the optional drag‑pin indicator.
Technical data includes model coding, voltage ratings, timing ranges, coil power consumption, contact current rating and operating temperature. Installation guidelines advise vertical mounting on a screen plate, energizing before use, and proper cleaning during maintenance. This manual is written in Chinese.
Xinling DS-30 specifications
| Operating temperature range | -20 to 440 °C |
|---|---|
| Maximum continuous contact current | 5 A |
| DC coil activation voltage | ≤75% of rated voltage |
| AC coil activation voltage | ≤85% of rated voltage |
| Coil power consumption (DC short‑time) | ≤25 W |
All Xinling DS-30 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the four mounting styles of the DS-30 series time relay?
The relay can be mounted as Al1K (recessed), Al1P (panel‑mounted), Al1H (protruding rear wiring) or Al1Q (protruding front wiring).
What is the maximum continuous contact current for the relay?
The contacts can carry a continuous current of up to 5 A.
What is the delay range for the DS-31 model?
The DS-31 model provides a delay range of 0.125 to 1.25 seconds.
What AC voltage options are available for the DS-30 series relay?
The relay can be powered from AC voltages of 220 V, 127 V, 110 V, or 100 V.
