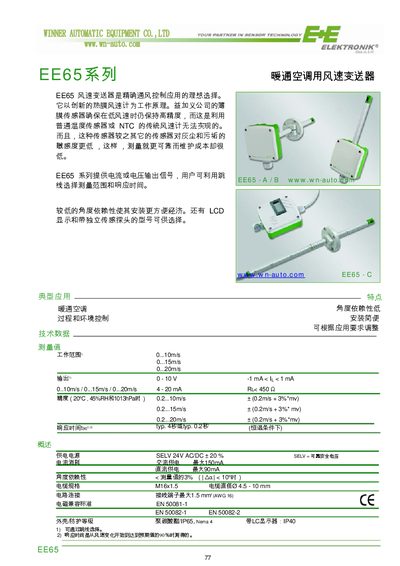

Winner EE65 Wind Speed Transmitter Manual
This manual describes the EE65 series wind speed transmitter used in HVAC air‑conditioning systems. It outlines the operating principle, signal output options, and the benefits of the built‑in temperature sensor for accurate low‑speed measurements.
The document includes technical data, wiring information, mounting instructions, and environmental limits, helping installers configure the device safely and efficiently. This manual is written in Chinese.
Winner EE65 specifications
| Maximum AC supply current | 150 mA |
|---|---|
| Maximum DC supply current | 90 mA |
| Operating temperature (sensor) | -25 °C to 50 °C |
| Operating temperature (circuit) | -10 °C to 50 °C |
| Mounting thread | M16×1.5 |
All Winner EE65 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What temperature ranges can the EE65 operate in?
The temperature sensor works from –25 °C to 50 °C, the circuit board from –10 °C to 50 °C, and the unit can be stored between –30 °C and 60 °C.
What power supply voltage does the EE65 transmitter require?
It operates on a SELV 24 V AC/DC supply with a tolerance of ± 20 %.
What is the maximum size for the wiring connection terminals?
The terminals can handle up to 1.5 mm² (AWG 16).
What supply voltage does the EE65 transmitter require?
It requires a 24 V AC SELV supply with a ±20 % tolerance.
Which output signal options are available for the EE65?
The transmitter can output either 0–10 V or 4–20 mA, selectable via jumpers.
