The EE65 series of air velocity transmitters is the ideal choice for accurate ventilation control applications. It is based on an innovative thermal film anemometer. The thin film sensor from IFM guarantees high accuracy even at low air velocities, which cannot be achieved with conventional anemometers using temperature sensors or NTC.
The EE65 series is a wind‑speed transmitter designed for precise ventilation control in HVAC and process environment applications. It uses a thin‑film sensor that maintains high accuracy even at low air speeds and is less sensitive to dust and dirt.

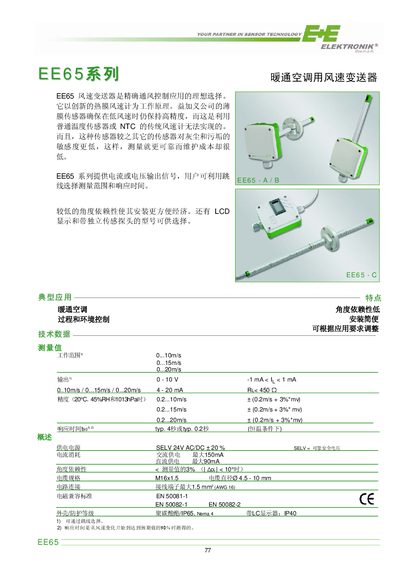

The manual covers power requirements, electrical connections, cable specifications, protection ratings, measurement ranges, output signals, temperature limits, and installation options such as wall‑mount, duct‑mount, and split‑probe configurations. This manual is written in Chinese.
| Power supply | SELV 24V AC/DC ± 20 % |
|---|---|
| Maximum AC current consumption | 150 mA |
| Maximum DC current consumption | 90 mA |
| Angle dependence | < 3 % (|Δα| < 10°) |
| Cable diameter | Ø 4.5 – 10 mm |
| Terminal size limit | 1.5 mm² (AWG 16) |
| Enclosure protection rating | IP65, Nema 4 |
| Wind‑speed measurement range | 0 – 10 m/s (up to 20 m/s for some models) |
| Accuracy (20 °C, 45 %RH, 1013 hPa) | ± (0.2 m/s + 3 %·mv) |
| Response time | typ. 4 s or typ. 0.2 s |
| Probe operating temperature range | -25 °C – 50 °C |
| Standard cable length | 1 m (3.3 ft) |
It operates on a SELV 24 V AC/DC supply with a tolerance of ± 20 %.
The terminals can handle up to 1.5 mm² (AWG 16).
The device measures wind speeds from 0 to 10 m/s, with extended ranges up to 15 m/s or 20 m/s depending on the model.
The enclosure is rated IP65 and complies with Nema 4 standards.
