Start here

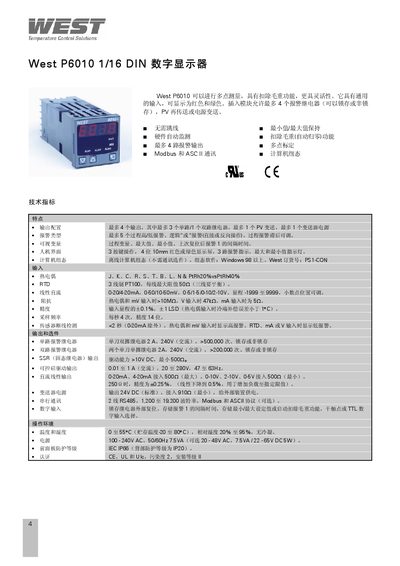

West P6010 1/16 DIN Digital Display User Manual
The West P6010 1/16 DIN digital display provides multi‑point measurement with up to four input channels, Modbus and ASCII communication, and configurable alarm functions. It supports various signal types such as 4‑20 mA, 0‑10 V, RTD and thermocouple inputs, and offers visual indicators for current, minimum, maximum and alarm status.
The manual details installation dimensions, power requirements (100‑240 V AC, 7.5 VA), IP66 protection, and wiring diagrams for RS‑485, SSR outputs and signal conditioning modules. It also describes the front‑panel interface, temperature and humidity operating ranges, and configuration options for alarm thresholds and display colors. This manual is written in Chinese.
West P6010 specifications
| Input Types | Thermocouple, RTD, DC Linear |
|---|---|
| Output Options | Single Alarm Relays, Dual Alarm Relay, SSR Driver Outputs, Triac Outputs, DC Linear Retransmit Outputs |
| Accuracy | +0.25 % at 250 Ω (degrades to 0.5 % with burden) |
| Sampling Rate | 4 samples per second, ~14‑bit resolution |
| Communication | 2‑wire RS485, 1200‑19200 baud, Modbus and ASCII protocols |
| Operating Temperature | 0 °C to 55 °C (storage –20 °C to 80 °C), 20 %‑95 % RH non‑condensing |
All West P6010 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What input types does the P6010 support?
The P6010 accepts thermocouple, RTD, and DC linear inputs.
How many alarm relays can be configured on the P6010?
Up to four alarm outputs are available, with a maximum of three single relays and one dual relay.
What communication protocols does the West P6010 support?
It supports Modbus and ASCII protocols over an RS‑485 interface.
What is the required power supply voltage for the West P6010?
The display operates from a 100 V to 240 V AC power source.
