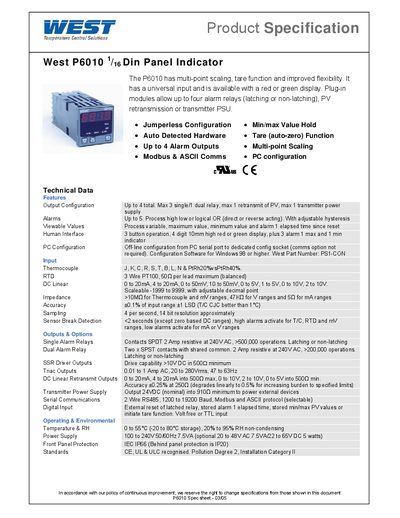

The West P6010 1/16 Din Panel Indicator features multi-point scaling, tare function, and improved flexibility. It has a universal input and is available with a red or green display. Plug-in modules allow up to four alarm relays, PV retransmission, or transmitter power supply.
The P6010 is a panel-mounted temperature controller with multi‑point scaling, tare function, and flexible input options. It supports thermocouple, RTD, and DC linear sensors and offers a choice of red or green 3‑digit displays.
The unit provides up to four alarm outputs (single or dual), SSR driver, triac, and DC linear retransmit options, along with RS‑485 Modbus/ASCII communication, a 4 Hz sampling rate, and 14‑bit resolution. It operates from 100‑240 V AC (optional low‑voltage supplies) and meets CE, UL, and IP66 standards.
| Input Types | Thermocouple, RTD, DC Linear |
|---|---|
| Output Options | Single Alarm Relays, Dual Alarm Relay, SSR Driver Outputs, Triac Outputs, DC Linear Retransmit Outputs |
| Accuracy | +0.25 % at 250 Ω (degrades to 0.5 % with burden) |
| Sampling Rate | 4 samples per second, ~14‑bit resolution |
| Communication | 2‑wire RS485, 1200‑19200 baud, Modbus and ASCII protocols |
| Operating Temperature | 0 °C to 55 °C (storage –20 °C to 80 °C), 20 %‑95 % RH non‑condensing |
The P6010 accepts thermocouple, RTD, and DC linear inputs.
Up to four alarm outputs are available, with a maximum of three single relays and one dual relay.
The controller provides 2‑wire RS485 communication supporting Modbus and ASCII protocols.
