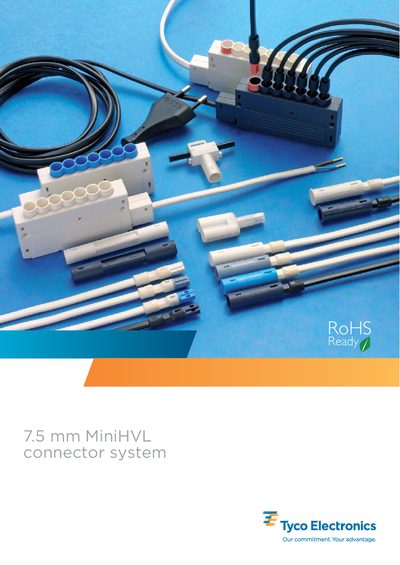

Tyco Electronics 7.5 mm MiniHVL Connector System Catalog
The 7.5 mm MiniHVL connector system from Tyco Electronics is designed to meet IEC 60320 requirements for lighting fixtures where compact size and easy interconnection are essential. It can be installed in small fixtures, furniture, ceilings, walls, and floors for power connection and coupling between lamps.
The catalog details the available outlet and plug assemblies, voltage ratings, mechanical features, and a full list of part numbers, tooling, and accessories. It also includes electrical ratings, protection class, operating temperature range, and durability specifications for reliable use in household and commercial lighting installations.
Tyco 7.5 mm MiniHVL connector system specifications
| Plug outer diameter | 7.5 mm |
|---|---|
| Rated current / voltage (250 VAC) | 2.5 A |
| Rated current / voltage (125 VAC) | 6 A |
| Rated current / voltage (42 VAC) | 7 A |
| Rated current / voltage (42 VDC) | 7 A |
| Protection class | I |
| Operating temperature | up to +60 °C |
| Durability | 300 cycles |
Source: Tyco Electronics 7.5 mm MiniHVL Connector System Catalog
All Tyco 7.5 mm MiniHVL connector system documents by type
Questions answered in these manuals
What is the outer diameter of the plug?
The plug has a 7.5 mm outer diameter.
From: Tyco Electronics 7.5 mm MiniHVL Connector System Catalog
Which IEC standard does the MiniHVL system comply with?
The system is designed according to IEC 60320.
From: Tyco Electronics 7.5 mm MiniHVL Connector System Catalog
