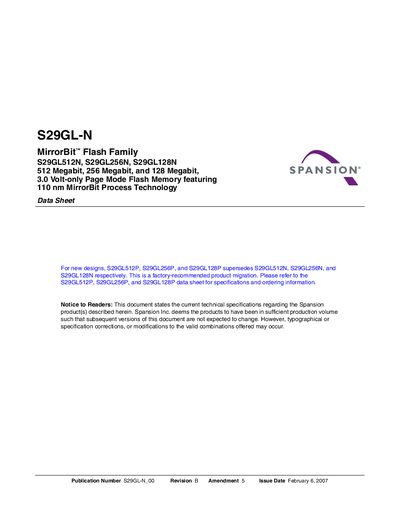

SPANSION S29GL-N S29GL-N Cover Sheet MirrorBit Flash Family S29GL512N S29GL256N S29GL128N 512 Megabit 256 Megabit 128 Megabit 3.0 Volt-only Page Mode Flash Memory featuring 110 nm Mir
The S29GL512N/256N/128N family are 3.0 V single‑power‑supply page‑mode flash memories fabricated with 110 nm MirrorBit technology. They are offered in 512 Mbit, 256 Mbit, and 128 Mbit densities and support a 16‑bit (or 8‑bit) data bus.
Key features include low‑power operation (typical 25 mA active read at 3 V), 100,000 erase cycles per sector, 20‑year data retention, and flexible sector architecture with secured silicon sector protection. Devices are supplied in 56‑pin TSOP or 64‑ball Fortified BGA packages.
Spansion 128N specifications
| Operating Voltage | 3.0 V single supply |
|---|---|
| Access Time (S29GL128N / S29GL256N) | 90 ns |
| Access Time (S29GL512N) | 100 ns |
| Typical Erase Cycles per Sector | 100,000 |
| Typical Data Retention | 20 years |
| Density – S29GL512N | 512 Mbit (67,108,864 bytes) |
| Density – S29GL256N | 256 Mbit (33,554,432 bytes) |
| Density – S29GL128N | 128 Mbit (16,777,216 bytes) |
