Key facts
- Brand
- SIPOS
- Model
- 5 Flash
- Category
- Industrial Supply
- Industry
- Industrial
- Documents
- 8
- Languages
- ZH · JA
- Last added
- 2011-11-06
Start here

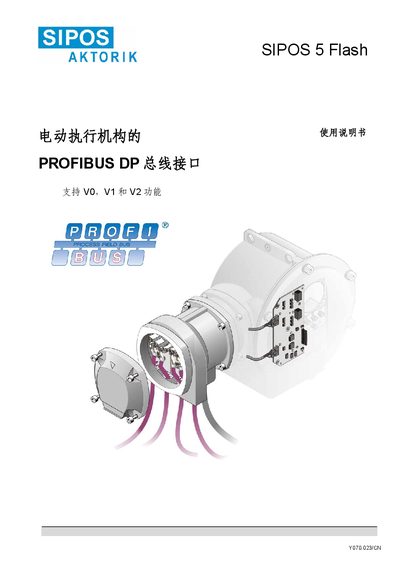

SIPOS 5 Flash Electric Actuator PROFIBUS DP Interface Manual
The document provides a complete description of the PROFIBUS DP bus interface for the SIPOS 5 Flash electric actuator, including safety notices, technical parameters, and communication settings. It is intended for use by service personnel and system integrators when planning, installing, commissioning or maintaining the actuator.
Key sections cover safety guidelines, an overview of PROFIBUS‑DP, functional features, electrical specifications, parameter setting via PROFIBUS, diagnostics, and reference documents. The manual also lists GSD files and identification numbers required for configuration in engineering tools. This manual is written in Chinese.
SIPOS 5 Flash specifications
| Protection rating | IP67 (upgradable to IP68) |
|---|---|
| Motor insulation class | F |
| Operating temperature range | -30 °C to +70 °C (extendable to +150 °C) |
| Supply frequency | 47 Hz to 63 Hz |
| Position feedback signal | 0/4–20 mA |
| Maximum closing force setting range | 30 % to 100 % of max output force |
| Speed levels | 7 levels, step factor 1.4 |
All SIPOS 5 Flash documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What protection rating does the SIPOS 5 Flash actuator have?
It is rated IP67, and can be upgraded to IP68 if required.
How many operation cycles per hour can the ECOTRON switch type achieve?
The ECOTRON switch type can perform up to 600 cycles per hour.
What is the required power supply for the actuator?
The actuator requires a DC 24 V power supply.
How do I set the DP slave address?
The DP slave address is configured through the parameter settings described in the manual.
From: SIPOS 5 Flash Electric Actuator PROFIBUS DP Interface Manual
What are the PROFIBUS identification numbers for the SIPOS 5 Flash actuator?
The single‑channel version uses ID 0x56D and the dual‑channel version uses ID 0x56E.
From: SIPOS 5 Flash Electric Actuator PROFIBUS DP Interface Manual
What is the maximum power rating of the control unit?
The control unit is rated for a motor power up to 1.5 kW, with optional additional power up to 3 kW.
