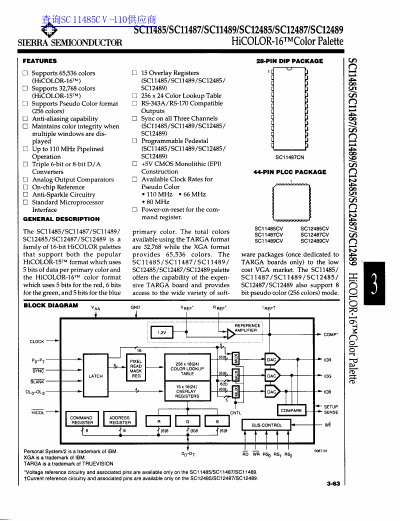

Sierra Semiconductor SC11485/SC11487/SC11489/SC12485/SC12487/SC12489 Datasheet
The SC11485/SC11487/SC11489/SC12485/SC12487/SC12489 is a family of 16-bit HiCOLOR palettes that support both the popular HiCOLOR-15 format (32,768 colors) and the HiCOLOR-16 color format (65,536 colors). These devices offer anti-aliasing capability, programmable pedestals, and maintain color integrity when multiple windows are displayed simultaneously.
The family includes variants with 6-bit or 8-bit D/A converters. The SC11489/SC12489 offers three 8-bit D/A converters and a 256 x 24 color lookup table, while the SC11485/SC12485 offers three 6-bit D/A converters and a 256 x 18 lookup table. All models support RS-343A and RS-170 compatible video outputs.
Sierra SC11485 specifications
| Color Support (HiCOLOR-16) | 65,536 colors |
|---|---|
| Color Support (HiCOLOR-15) | 32,768 colors |
| Pseudo Color Support | 256 colors |
| Maximum Clock Rate | 110 MHz |
| Video Standards | RS-343A / RS-170 Compatible |
Source: Sierra Semiconductor SC11485/SC11487/SC11489/SC12485/SC12487/SC12489 Datasheet
All Sierra SC11485 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the full scale output current when using an external voltage reference on SC11489?
The relationship between RSET and the full scale output current uses a K value of 3.025 for 8-bit operation.
From: Sierra Semiconductor SC11485/SC11487/SC11489/SC12485/SC12487/SC12489 Datasheet
Does the SC11485/SC11487/SC11489/SC12485/SC12487/SC12489 include on-chip comparators?
Yes, on-chip analog comparators are included to simplify diagnostics and debugging, with the resulting output onto the SENSE pin.
From: Sierra Semiconductor SC11485/SC11487/SC11489/SC12485/SC12487/SC12489 Datasheet
How many overlay registers are available on the SC11489 and SC12489 models?
The SC11489 and SC12489 models include 15 overlay registers.
From: Sierra Semiconductor SC11485/SC11487/SC11489/SC12485/SC12487/SC12489 Datasheet
What is the maximum number of colors supported by the HiCOLOR-16 format?
The HiCOLOR-16 color format supports up to 65,536 colors.
From: Sierra Semiconductor SC11485/11487/11489/12485/12487/12489 HiCOLOR-16 Color Palette Datasheet
What is the maximum clock rate for Pseudo Color operation?
The available clock rates for Pseudo Color include up to 110 MHz.
From: Sierra Semiconductor SC11485/11487/11489/12485/12487/12489 HiCOLOR-16 Color Palette Datasheet
